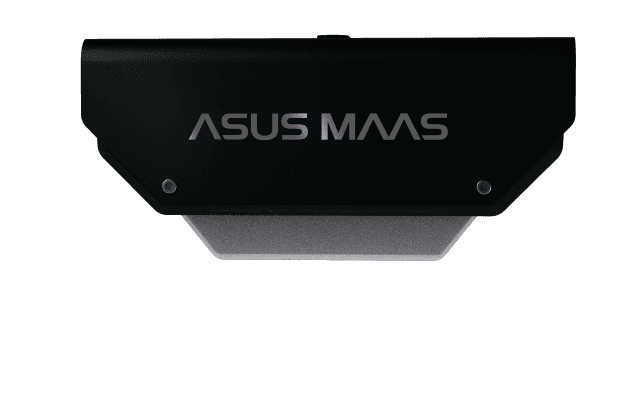

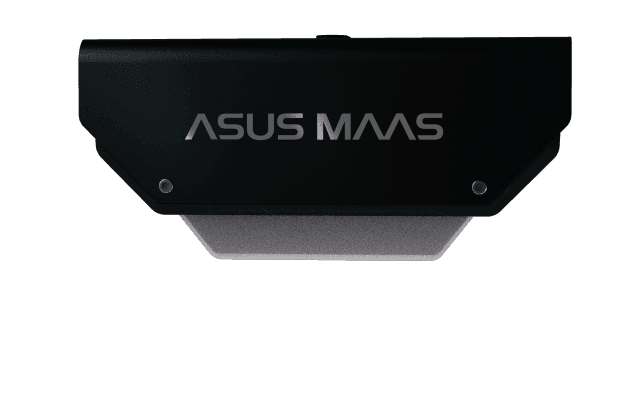

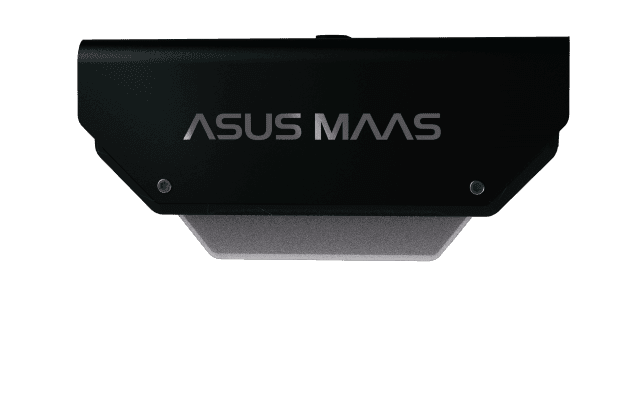

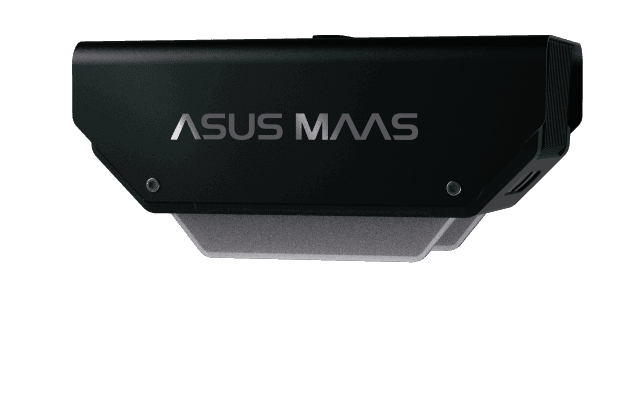

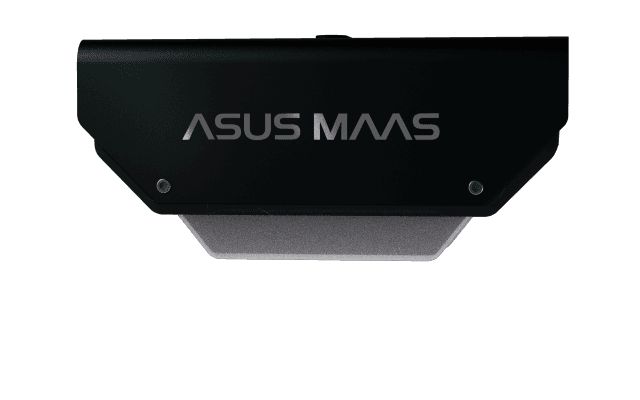

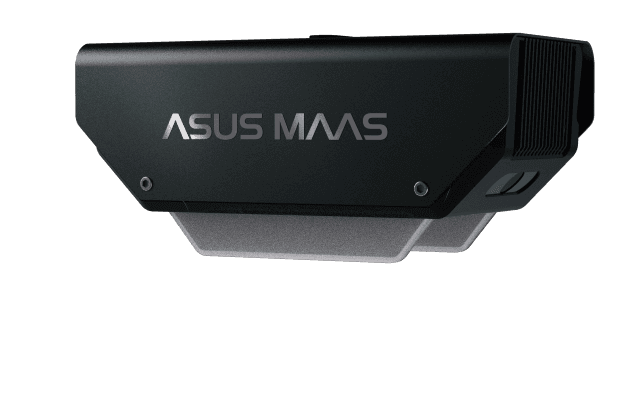

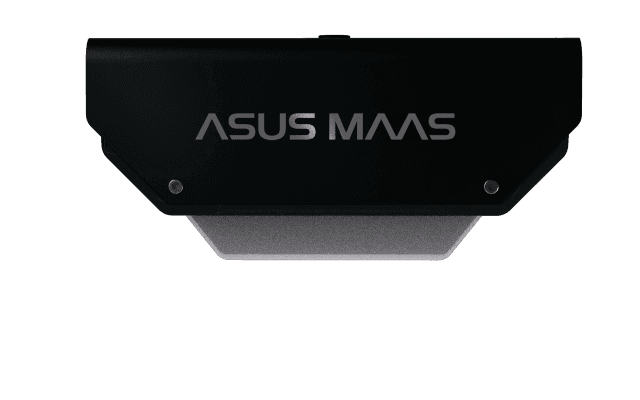

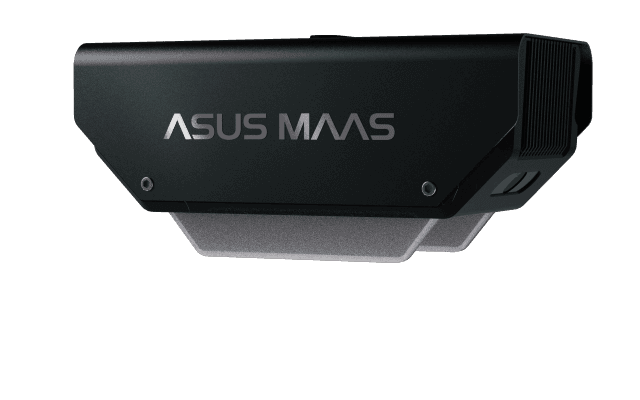

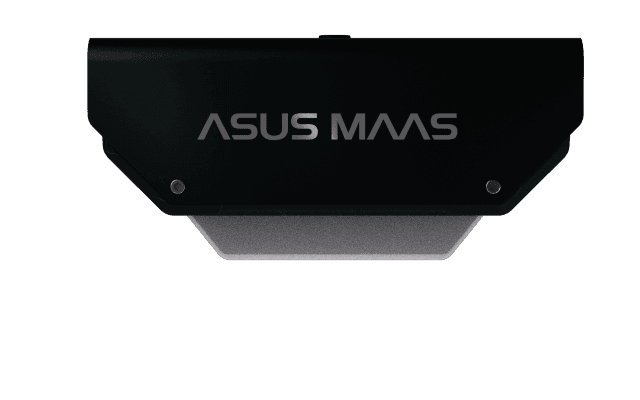

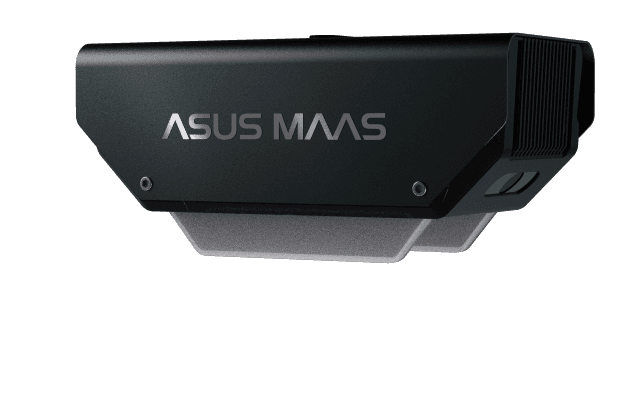

IntelliPark
Spotter X
POWERED BY ASUS IoT

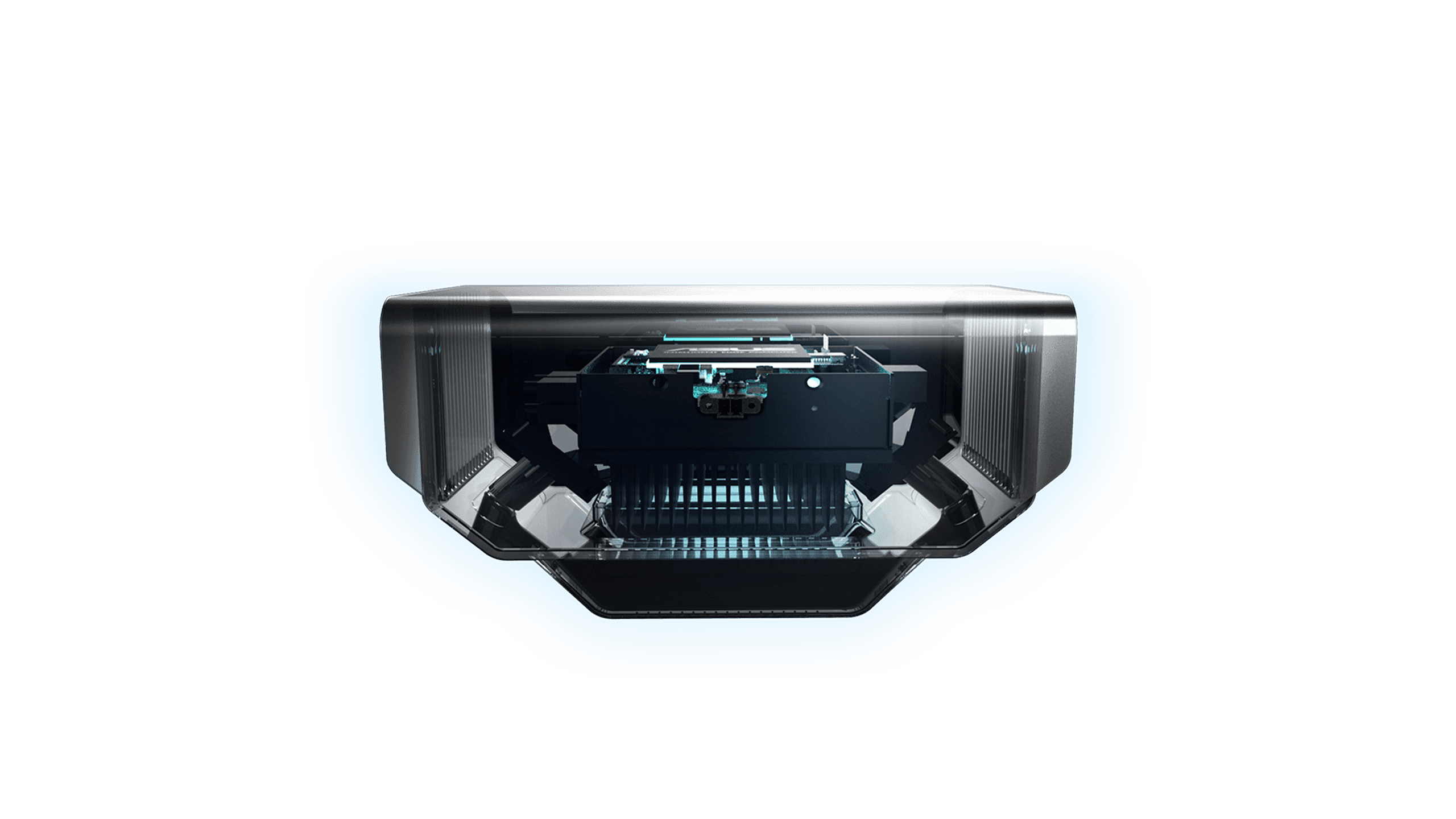

It's powered by Asus IoT and embedded with high performance
Edge AI computer for reliable and stable AI recognition.
It's powered by Asus IoT and embedded with high performance
Edge AI computer for reliable and stable AI recognition.

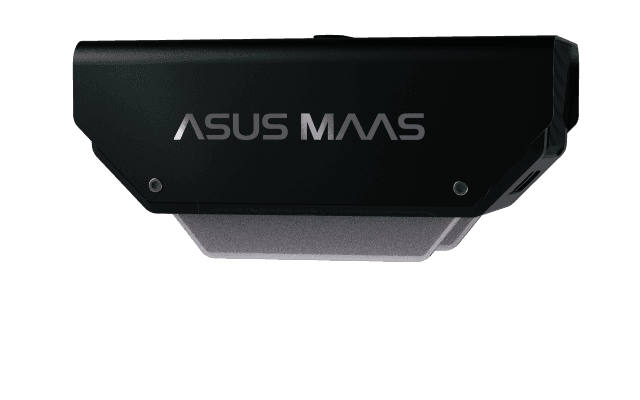

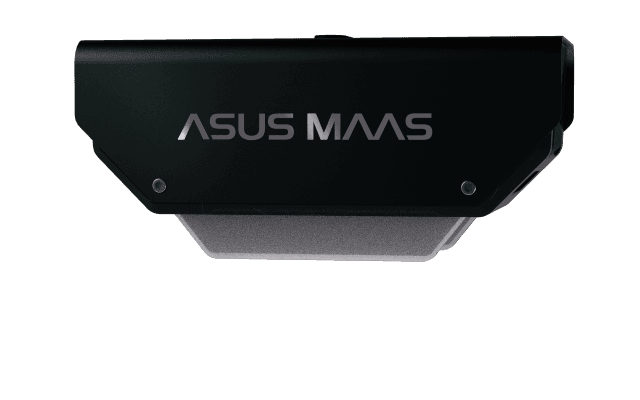

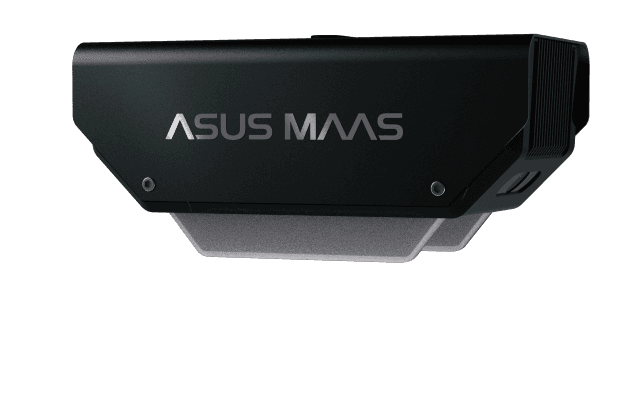

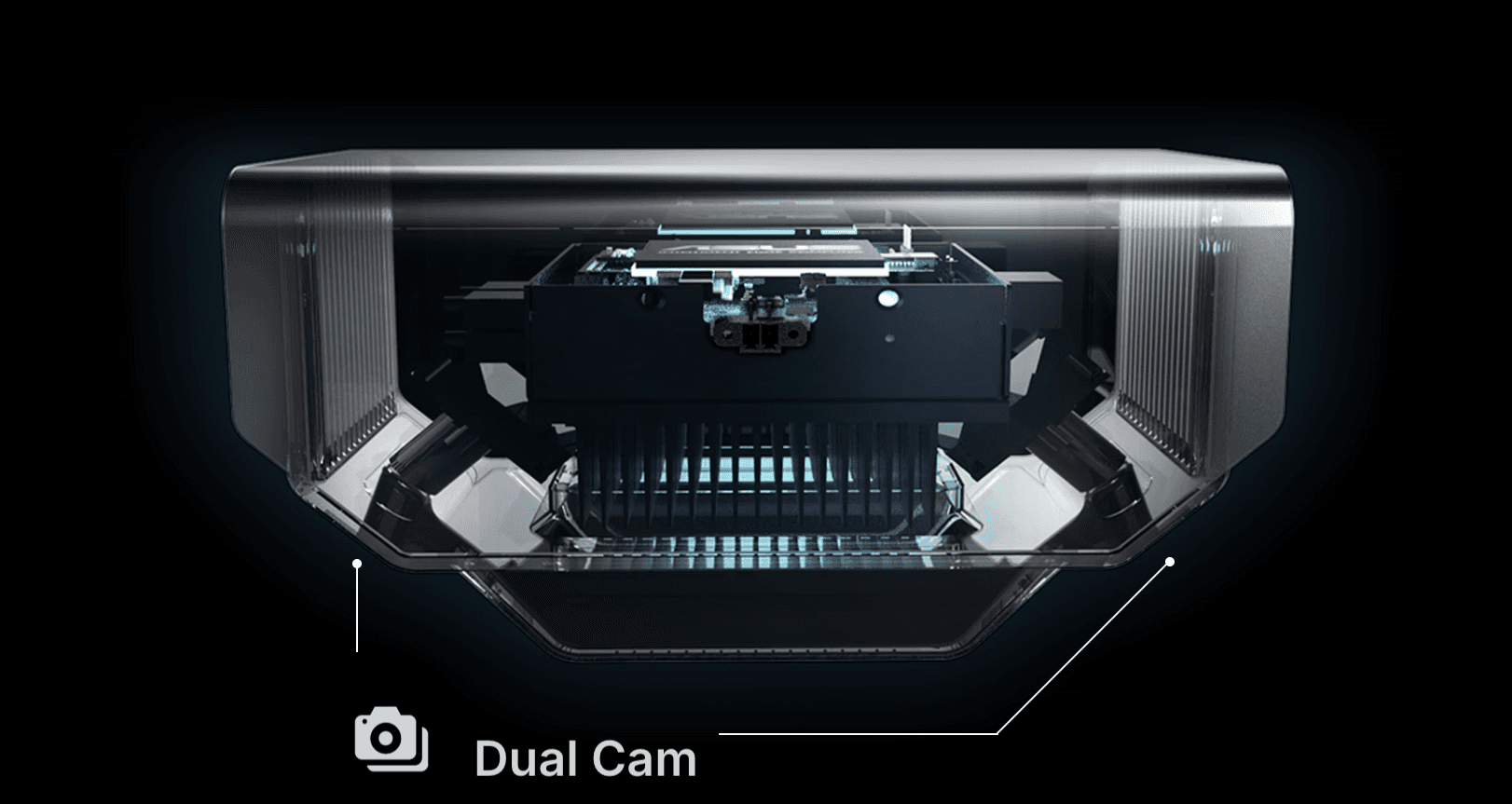

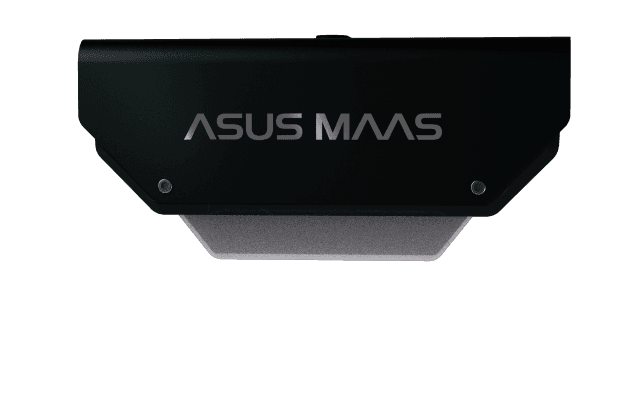

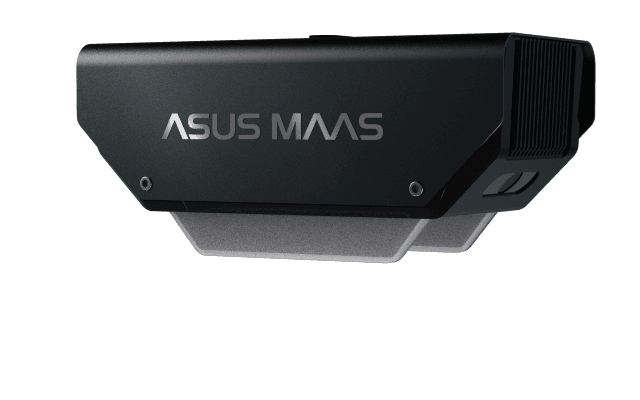

Dual Cam Design
Dual Cam

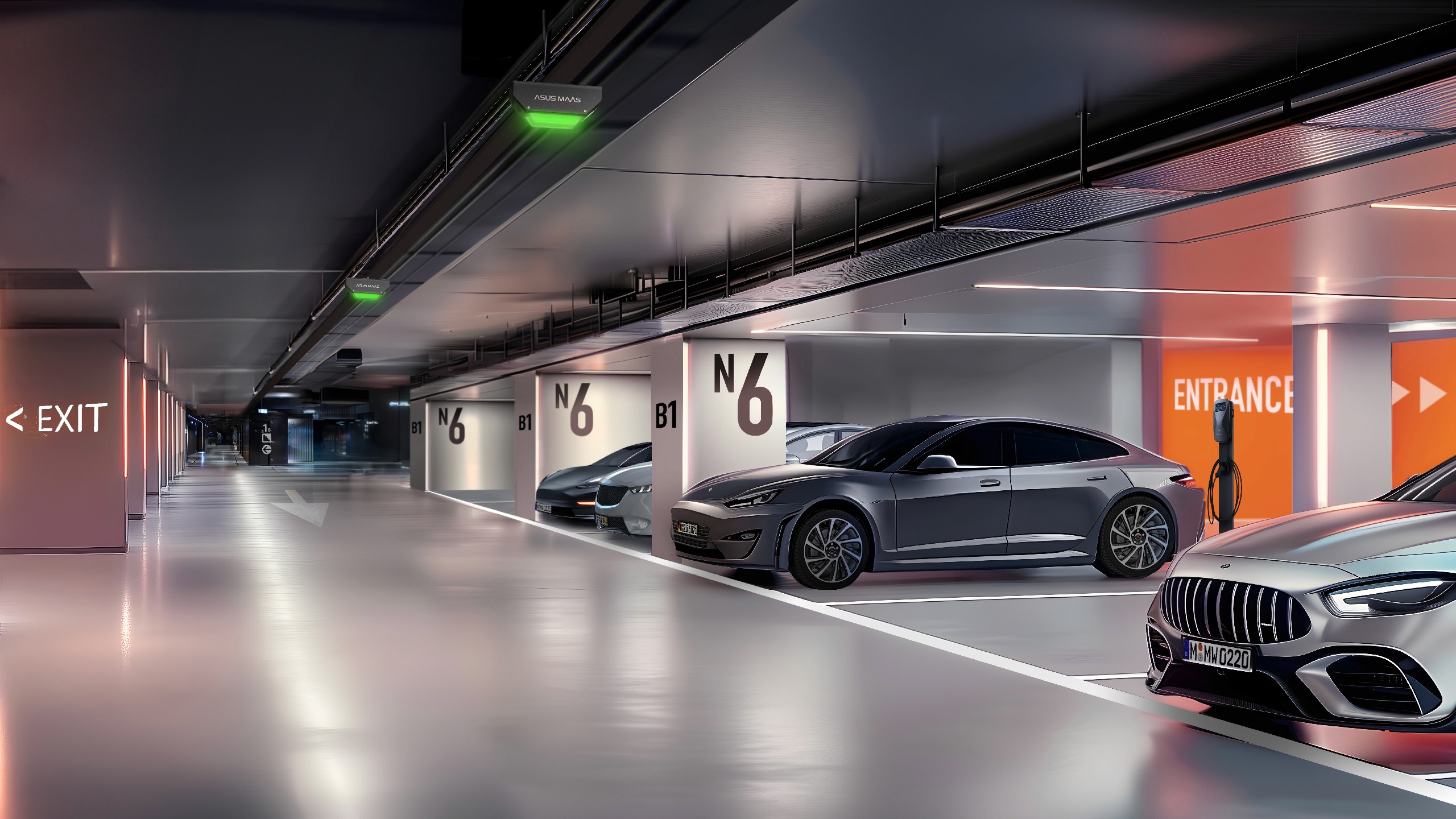

Built-in dual cameras capable of simultaneously detecting and recognizing vehicles parked on both sides of the lane.
Dual Cam Design
Built-in dual cameras capable of simultaneously detecting and recognizing vehicles parked on both sides of the lane.

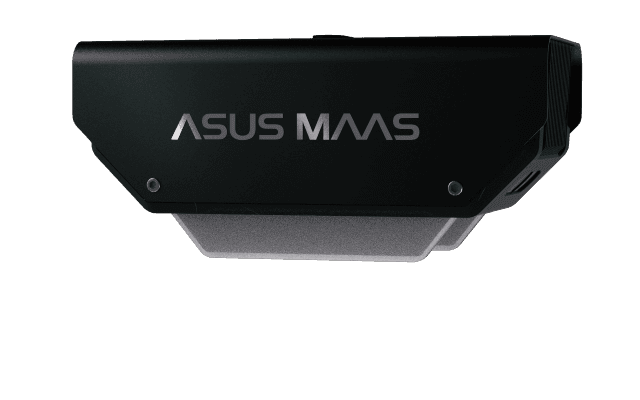

ALPR System.
ALPR System
High-performance ALPR system for up to 6 vehicles.

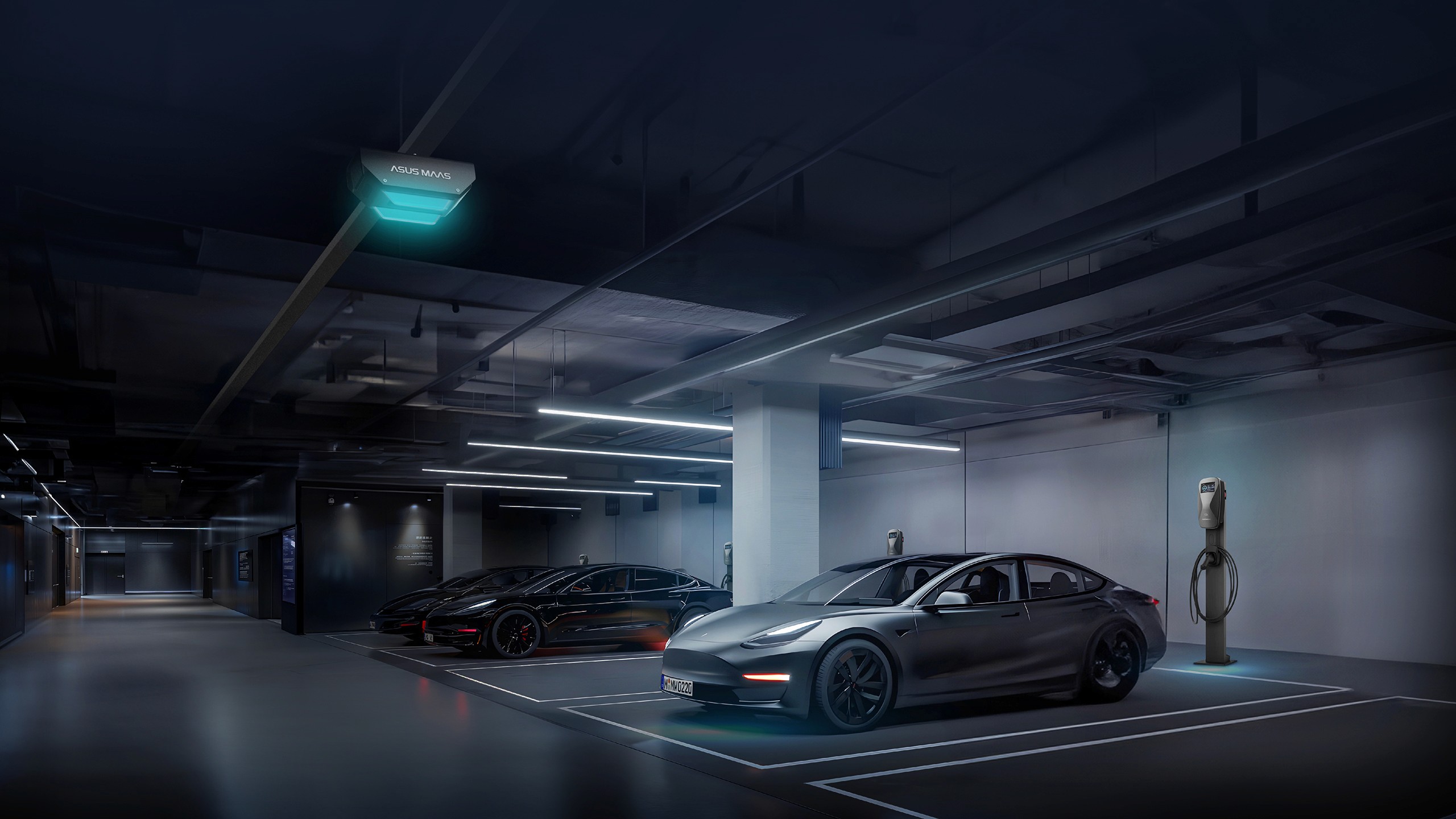

Through Sentry mode,
the system can detect the status of
the vehicle during charing.
Sentry
Mode.

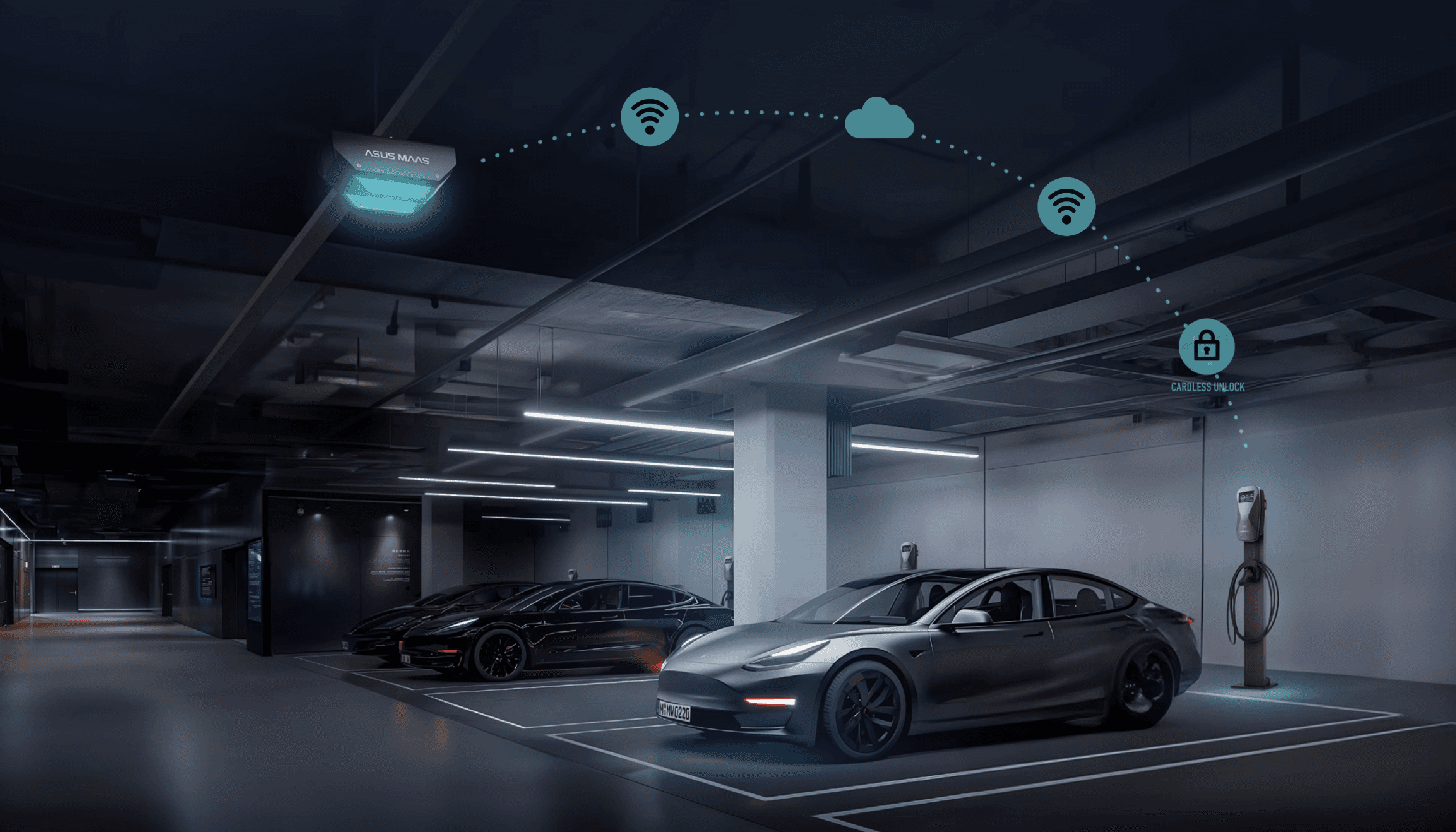

Cardless
Unlock.
Unlocking or accessing a device without
the use of physical access cards.
Cardless Unlock
Unlocking or accessing a device without the use of physical access cards.
FUNCTION
AUTOMATIC LICENSE PLATE RECOGNITION (ALPR)
is a technology that uses optical character recognition on images to read vehicle license plates.
INTELLIGENCE VIDEO SURVEILLANCE SYSTEM (IVS)
utilizes computer algorithms to analyze video feeds. To enhance the capabilities by automating the process of monitoring, and responding in real-time.
OCCUPANCY DETECTION
utilize sensors, cameras, or other technologies to determine if a space is occupied by people.
DUAL CAMERAS
refers to the process of supplying electrical energy to electric vehicles (EVs) to recharge their batteries.
INDICATOR LIGHT
provide users with quick and easily understandable feedback about the status or condition of a system.
AI 2.0
Combining Edge mode AI engine & Hyper mode AI 2.0 computing power to rapidly and reliably recognize license plates.
FUNCTION
AUTOMATIC LICENSE PLATE RECOGNITION (ALPR)
is a technology that uses optical character recognition on images to read vehicle license plates.
AUTOMATIC LICENSE PLATE RECOGNITION (ALPR)
is a technology that uses optical character recognition on images to read vehicle license plates.
INTELLIGENCE VIDEO SURVEILLANCE SYSTEM (IVS)
utilizes computer algorithms to analyze video feeds. To enhance the capabilities by automating the process of monitoring, and responding in real-time.
INTELLIGENCE VIDEO SURVEILLANCE SYSTEM (IVS)
utilizes computer algorithms to analyze video feeds. To enhance the capabilities by automating the process of monitoring, and responding in real-time.
OCCUPANCY DETECTION
utilize sensors, cameras, or other technologies to determine if a space is occupied by people.
OCCUPANCY DETECTION
utilize sensors, cameras, or other technologies to determine if a space is occupied by people.
DUAL CAMERAS
refers to the process of supplying electrical energy to electric vehicles (EVs) to recharge their batteries.
DUAL CAMERAS
refers to the process of supplying electrical energy to electric vehicles (EVs) to recharge their batteries.
INDICATOR LIGHT
provide users with quick and easily understandable feedback about the status or condition of a system.
INDICATOR LIGHT
provide users with quick and easily understandable feedback about the status or condition of a system.
SPECIFICATION

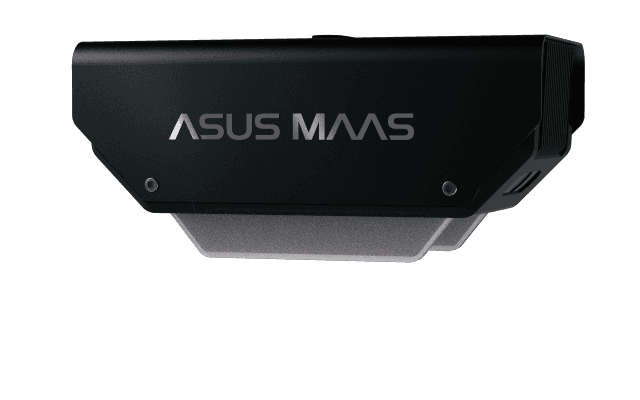

IntelliPark Spotter X
Model
Model
AM-H-02A / AM-H-02B
AM-H-02A / AM-H-02B
Size
Size
Dimension (WxDxH)
26 X 13.5 X 12 cm
Dimension (WxDxH)
26 X 13.5 X 12 cm
Electrical
Electrical
Supply Power
PoE 802.3at 25.5W (max)
Supply Power
PoE 802.3at 25.5W (max)
License PlateRecognition Accuracy
> 99%
License PlateRecognition Accuracy
> 99%
LED Indicators
7 colors ( R, G, B, C, M, Y, W )
LED Indicators
7 colors ( R, G, B, C, M, Y, W )
Network Interface
RJ45 1 Gbps ethernet
Network Interface
RJ45 1 Gbps ethernet
Environment
Environment
Operation Temperature
-20°C ~ +70°C
Operation Temperature
-20°C ~ +70°C
Operation Humidity
10% ~ 95% relative humidity, non-condensing
Operation Humidity
10% ~ 95% relative humidity, non-condensing
Humidity
< 95% relative humidity, non-condensing
Humidity
< 95% relative humidity, non-condensing
Altitude
< 2000m
Altitude
< 2000m
Cooling System
Passive
Cooling System
Passive
Camera
Camera
Number Of Cameras
2
Number Of Cameras
2
Field Of View
D:121° / H:102° / V:54°
Field Of View
D:121° / H:102° / V:54°
Angle Of View
60° (Angle of depression)
Angle Of View
60° (Angle of depression)
Camera Pixels
2M pixels
Camera Pixels
2M pixels
Resolution
1920 x 1080 pix
Resolution
1920 x 1080 pix
File Formats
JPEG
File Formats
JPEG
Coverage
Max 6 parking spaces(AM-H-02A) / Max 8 parking spaces(AM-H-02B)
Coverage
Max 6 parking spaces(AM-H-02A) / Max 8 parking spaces(AM-H-02B)
SPECIFICATION
IntelliPark Spotter X
Model
AM-H-02A / AM-H-02B
Size
Dimension (WxDxH)
26 X 13.5 X 12 cm
Electrical
Supply Power
PoE 802.3at 25.5W (max)
License PlateRecognition Accuracy
> 99%
LED Indicators
7 colors ( R, G, B, C, M, Y, W )
Network Interface
RJ45 1 Gbps ethernet
Environment
Operation Temperature
-20°C ~ +70°C
Operation Humidity
10% ~ 95% relative humidity, non-condensing
Humidity
< 95% relative humidity, non-condensing
Altitude
< 2000m
Cooling System
Passive
Camera
Number Of Cameras
2
Field Of View
D:121° / H:102° / V:54°
Angle Of View
60° (Angle of depression)
Camera Pixels
2M pixels
Resolution
1920 x 1080 pix
File Formats
JPEG
Coverage
Max 6 parking spaces(AM-H-02A)
Max 8 parking spaces(AM-H-02B)
