IntelliPark
ALPR EV
AI
AI
AI
AI
Intelligence Recognition
POWERED BY ASUS IoT
It's powered by Asus IoT and embedded with high
performance Edge AI computer for reliable and
stable AI recognition.
AWARD
iF DESIGN AWARD 2024 WINNER

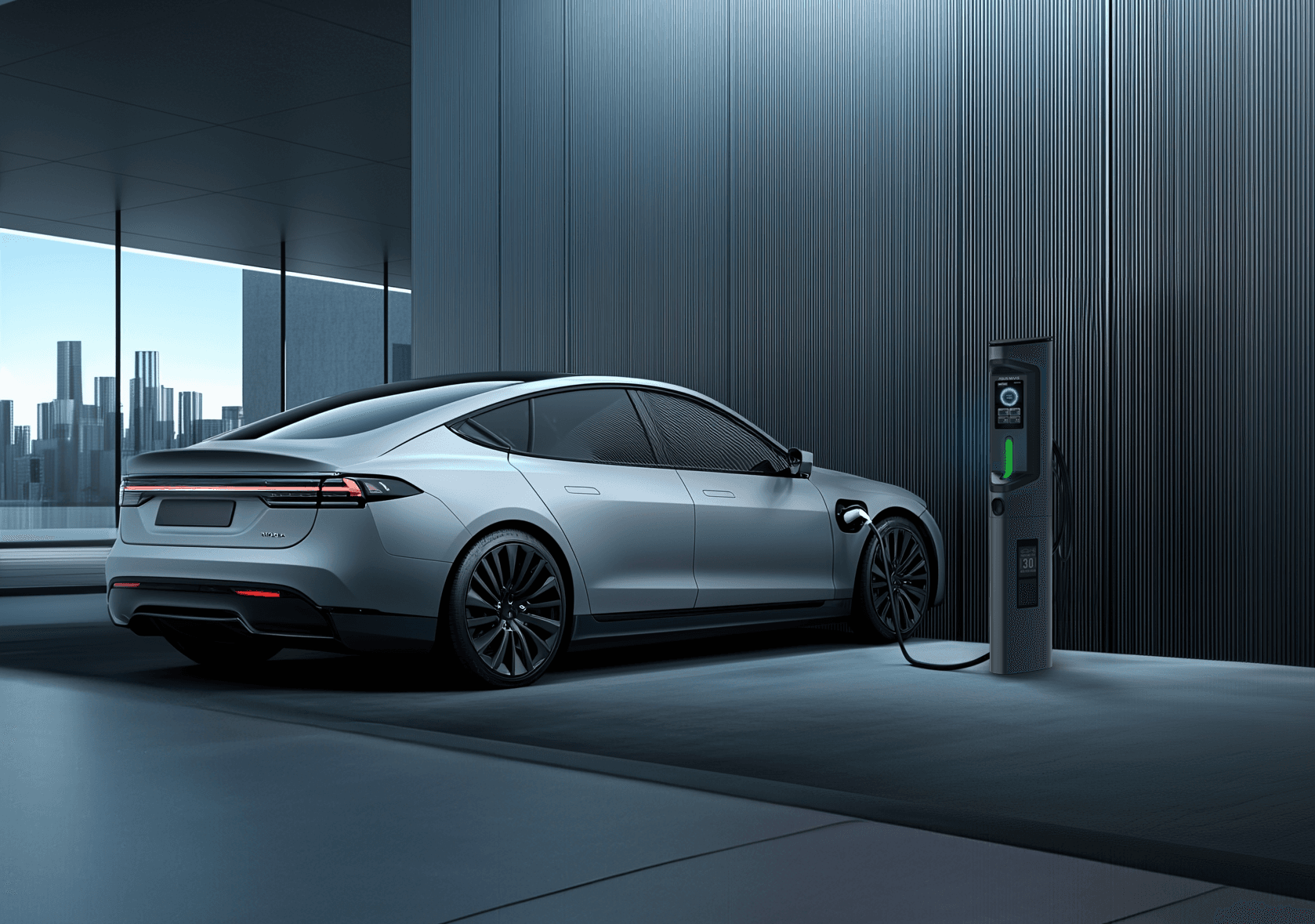

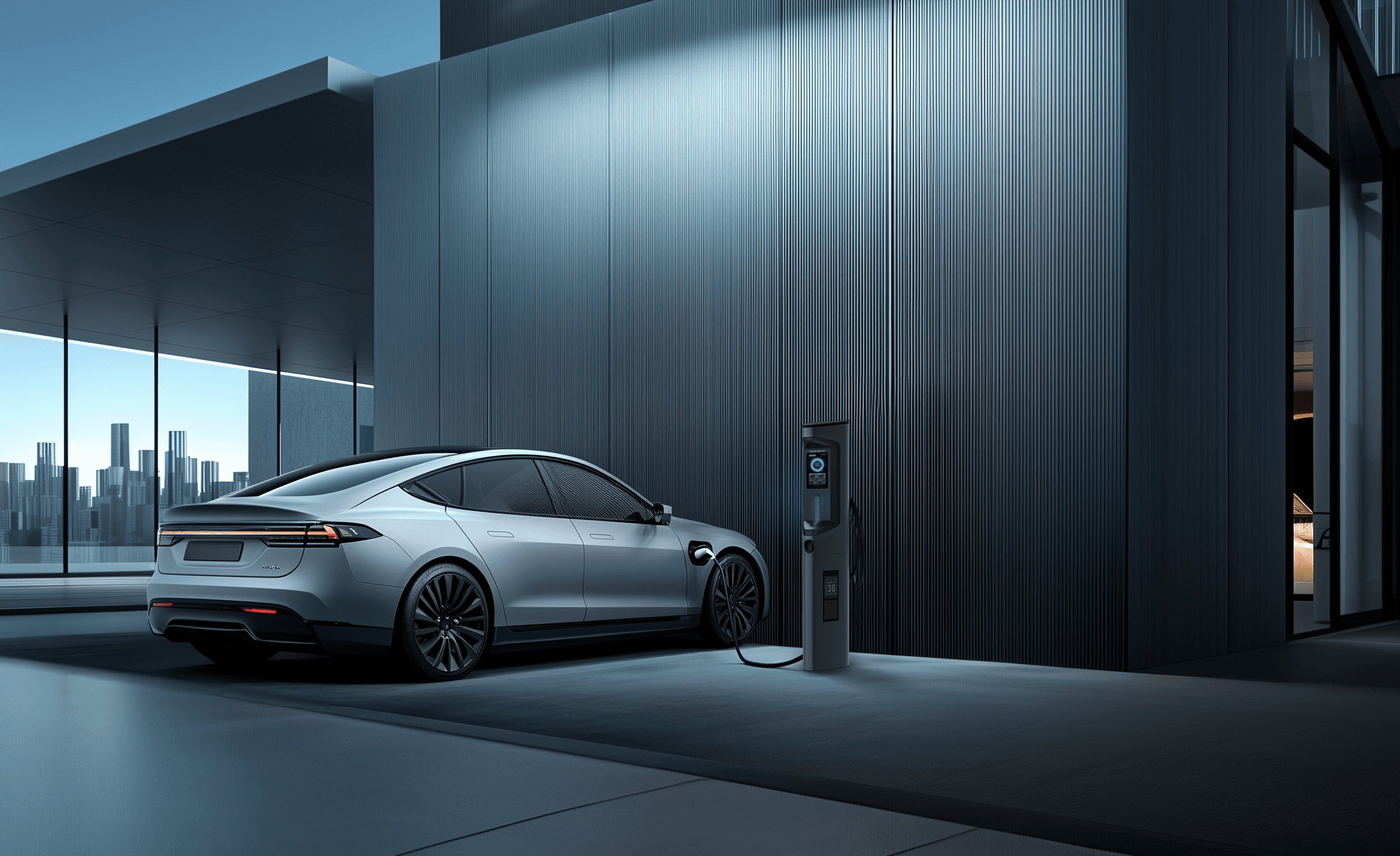

IntelliPark EV Charging System
FUNCTION
AUTOMATIC LICENSE PLATE RECOGNITION (ALPR)
is a technology that uses optical character recognition on images to read vehicle license plates.
PAYMENT
refers to the process of paying for the use of parking spaces in a designated area, including on-street parking spaces and public parking lot.
OCCUPANCY DETECTION
utilize sensors, cameras, or other technologies to determine if a space is occupied by people.
EV CHARGING
refers to the process of supplying electrical energy to electric vehicles (EVs) to recharge their batteries.
INDICATOR LIGHT
provide users with quick and easily understandable feedback about the status or condition of a system.
SPECIFICATION
IntelliPark ALPR EV
Model
AM-P-01A
Size
Dimension (WxDxH)
36 X 27.5 X 140 cm
Charging Cable Length
5.3 m
Display Panel
Resolution
1024 X 600 pix
Brightness
1000 nits
Dimension
15.7 X 9 cm
Input
PCAP multi-touch
Regulation
Charging Connector
SAE J1772 Type 1
Certification Compliance
CNS 15511-1 (Safety), CNS 15511-21-2 (EMC)
Communication
Protocol
OCPP 1.6 JSON
Protection
Leakage Current Protection
RCD Type A (30mA)
Input
UVP, OVP, Surge protection, Ground fault
Output
OCP, Control pilot fault, Residual current protection
Internal
Over temperature, relay welding detection, MCU error detection
Electrical
AC Input Rating
Single phase, 220+/-10%, VAC, 50 / 60Hz
Wire Connection
L1 / L2 / PE or L / N / PE
Max. Input Current
48A
AC Output Power
11.5KW (Max.)
Network Interface
Network Interface
ethernet
Environment
Operation Temperature
-30°C ~ +50°C
Storage Temperature
-40°C ~ +80°C
Humidity
< 95% relative humidity, non-condensing
Altitude
< 2000m
Cooling System
Passive
Camera
Camera Specification
2MP camera with automatic license plate recognition
License Plate Recognition Accuracy
> 99%
Coverage
1 parking space
